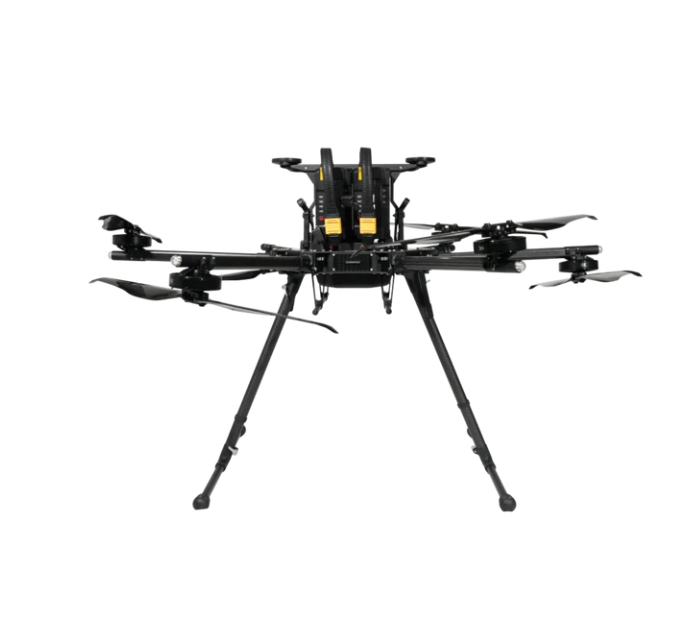

Inspired Flight IF1200A Drone + Configurations
Inspired Flight IF1200 Heavy-lift Hexacopter | Unrivaled Endurance. Limitless Possibilities.
Developed to meet the rigorous standards of the United States Air Force, the IF1200 stands out as a leader in flight time and efficiency for industrial, commercial, and enterprise applications. This heavy-lift hexacopter is the workhorse of the drone industry, offering a safe and reliable platform for various tools needed to accomplish any aerial mission. Certified Blue UAS and NDAA compliant, the IF1200 is trusted by both government and commercial agencies.
Key Features
- 43-minute Max Flight Time
- Universal Payload Interface
- Blue UAS & NDAA Compliant
- 56 MPH Max Speed
- 19.1 LBS Max Payload
Payload Integrations
Inspired Flight Technologies partners with trusted manufacturers to offer a range of payload integrations.. With options for Optical Imaging, EO/IR solutions, LiDAR, and Specialized Solutions, the IF1200 provides a trusted platform for safely flying these valuable payloads.
Flight Time
The IF1200 leads its category in flight times,, attributed to its 16000mAh Intelligent Batteries. These batteries ensure consistent flight duration regardless of payload. The IF1200 offers a maximum flight time of 43 minutes, and real-world flight times of over 30 minutes are achievable even with an 8 LBS payload.
Heavy Lift
To adhere to FAA Part 107 regulations, the IF1200 has a maximum payload capacity of 19.1 lbs, ensuring compliance with the 55 lbs weight limit. With the appropriate certification, the IF1200 can lift payloads of up to 28.7 lbs.
Safety
The IF1200 features SAFE drone capability, allowing it to maintain safe and controlled flights even in the unlikely event of a motor failure. In such cases, the IF1200A alerts the operator to land immediately while staying in a safe manual flying configuration. This ensures peace of mind for operators, particularly when handling valuable payloads or operating over critical assets.
Situational Awareness
With a built-in FPV camera, pilots can have a first-person view of the drone's surroundings in real-time. This feature enhances situational awareness, allowing for more precise control and safer operations, especially in challenging environments.
CODE #UAS04ENT
Physical Features
Diagonal Size (propeller center to center): 1,025 mm 40.4 inches
Unfolded Size (flight ready, WxLxH): 165.5 x 154 x 76.5 cm 65.1 x 60.6 x 30.2 inches

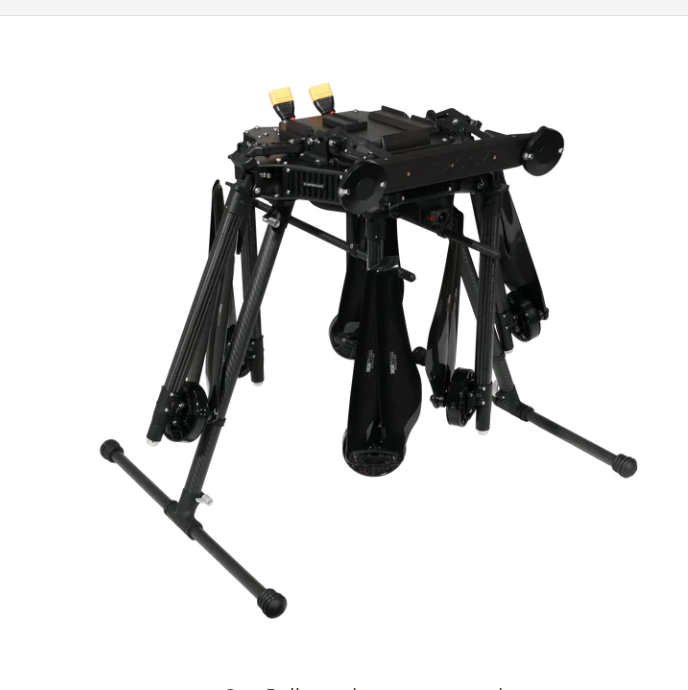

Folded Size (stow, WxLxH): 47.5 x 49.5 x 47 cm 18.7 x 19.5 x 18.5 inches
Empty Weight (w/o batteries): 7.8 kg 17.2 lbs
Weight w/ Batteries: 16.3 kg 35.9 lbs
Max Gross Takeoff Weight: 25.0 kg 55.0 lbs
Max Payload Capacity: 8.7 kg 19.1 lbs
Transport Case Size: (WxLxH) 64.8 x 64.8 x 58.4 cm 25.5 x 25.5 x 23.0 inches
Transport Case Weight: (w/ aircraft) 29.0 kg 64 lbsPerformance
Max Ascent Speed
Max Descent Speed
Max Air Speed
Max Wind Resistance 5 m/s
2.5 m/s
25 m/s
12 m/s, 15 m/s gusts 16.4 ft/s
8.2 ft/s
56 mph
23 knot, 29 knot gusts
Max Tilt Angle 30°
Max Angular Velocity Tilt: 300°/s, Yaw: 45°/s
Operating Temperature -10°C ~ 40°C 14°F ~ 104°F
Operating Humidity 10%~95%
Service Ceiling (with given payload) 3.9 km (12,800 ft) w/ 4 kg, 2.2 km (7,200 ft) w/ 8.7 kgFlight Stack
Flight Controller
GNSS / Compass
Payload Power Rails CubePilot Cube Blue H7 Triple Redundant IMUs
CubePilot Here3 M8P (2x)
5v, 12v/15v, 18v, 44.4v (12s battery voltage)
Payload Interface IFT Universal Payload Interface V2.1
Operating Software Copter by ArdupilotFlight Modes
Position Hold Holds altitude and position, manual roll and pitch
Loiter Holds altitude and position, precision manual movements using GPS
Auto Executes pre-defined mission
RTL Auto returns to takeoff location and lands
Land Auto land while maintaining position
Altitude Hold Holds altitude only, failsafe mode if GPS signal lost
